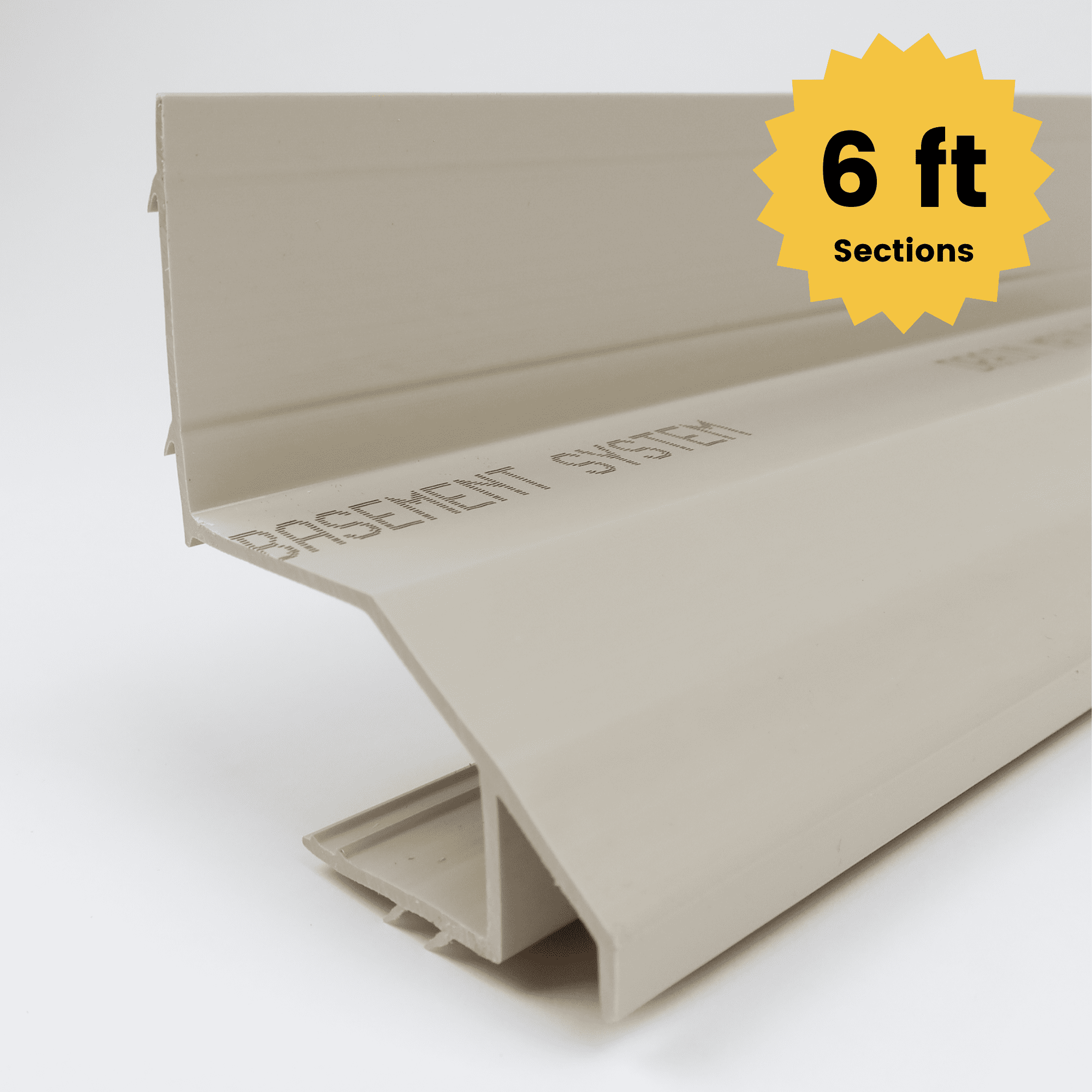

Drain Main Basement System 6ft Sections (90ft Cartons)

ITEM# DM4447

$279.80

Drain Main Basement System is our rugged stand-alone interior basement waterproofing footer system. This footer channel offers superior protection against basement water seepage in one easy installation. Unlike traditional drain tile there is no mud digging or trenching needed.

  • 90 ft per carton
  • $3.11 per ft
  • 6 ft main sections
A Lifetime Membership is required to order this product. Become a Member to gain instant access to our Member’s Only professional basement waterproofing supplies. All contractors welcome! Already a Member? Log in into your account. Questions? Call us at 651-644-2000.
**SKID PRICING DISCOUNT: Order in increments of 24 cartons for skid discount automatically applied at checkout.

Drain Main Basement System Footer TileSuperior Protection In One Easy Installation

Drain Main Basement System’s innovational design integrates the reliable baseboard style system with the tried-and-true subfloor drain tile system in one product.

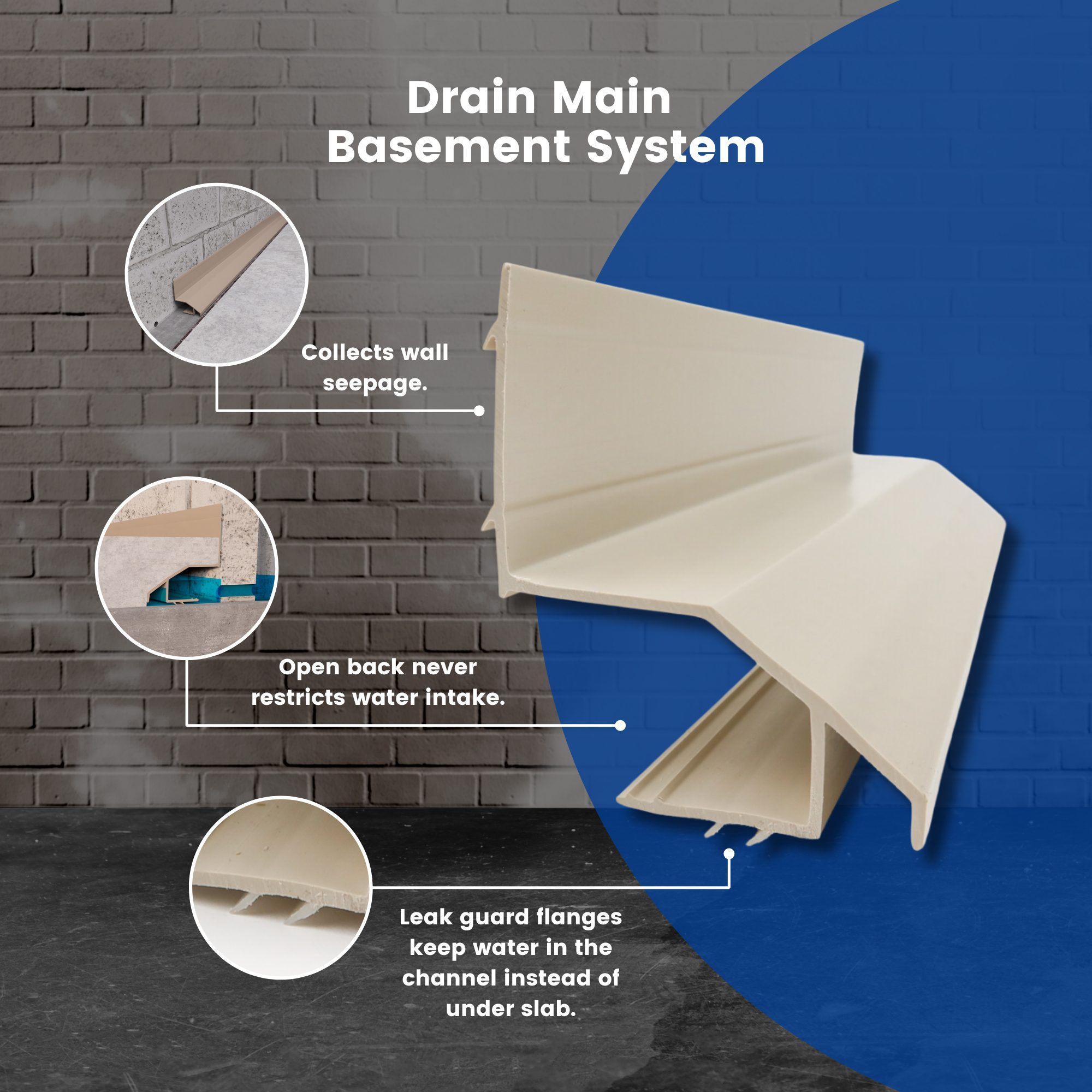

Open Back Never Restricts Water

Drain Main Basement System’s open back design allows water to enter the channel for the full length of joint where the footing and walls meet. Unlike other systems that restrict water intake to holes punched in the back channel.

Bone Dry Cement Seams

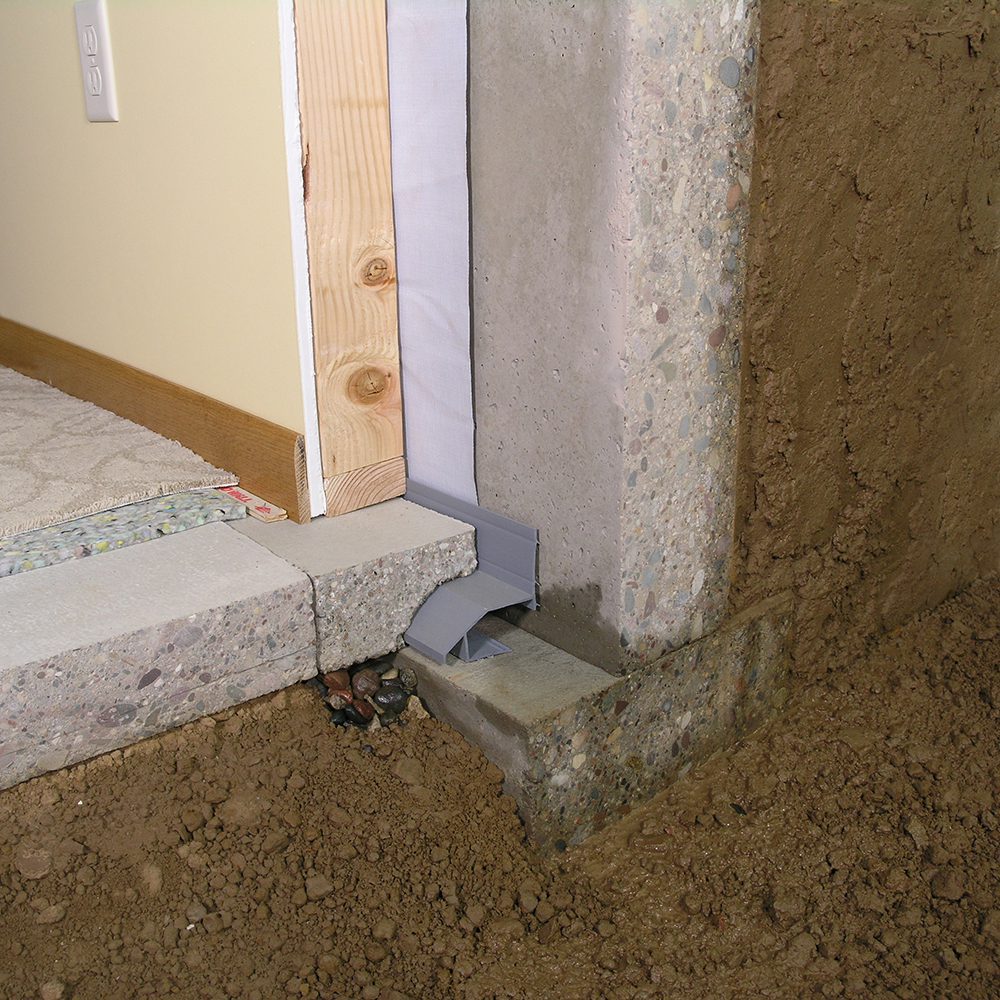

Drain Main Basement System’s front toe channel collects water directly under concrete seam keeping the seam between the old and new concrete bone dry after installation.

Catches Water From The Face Of The Wall

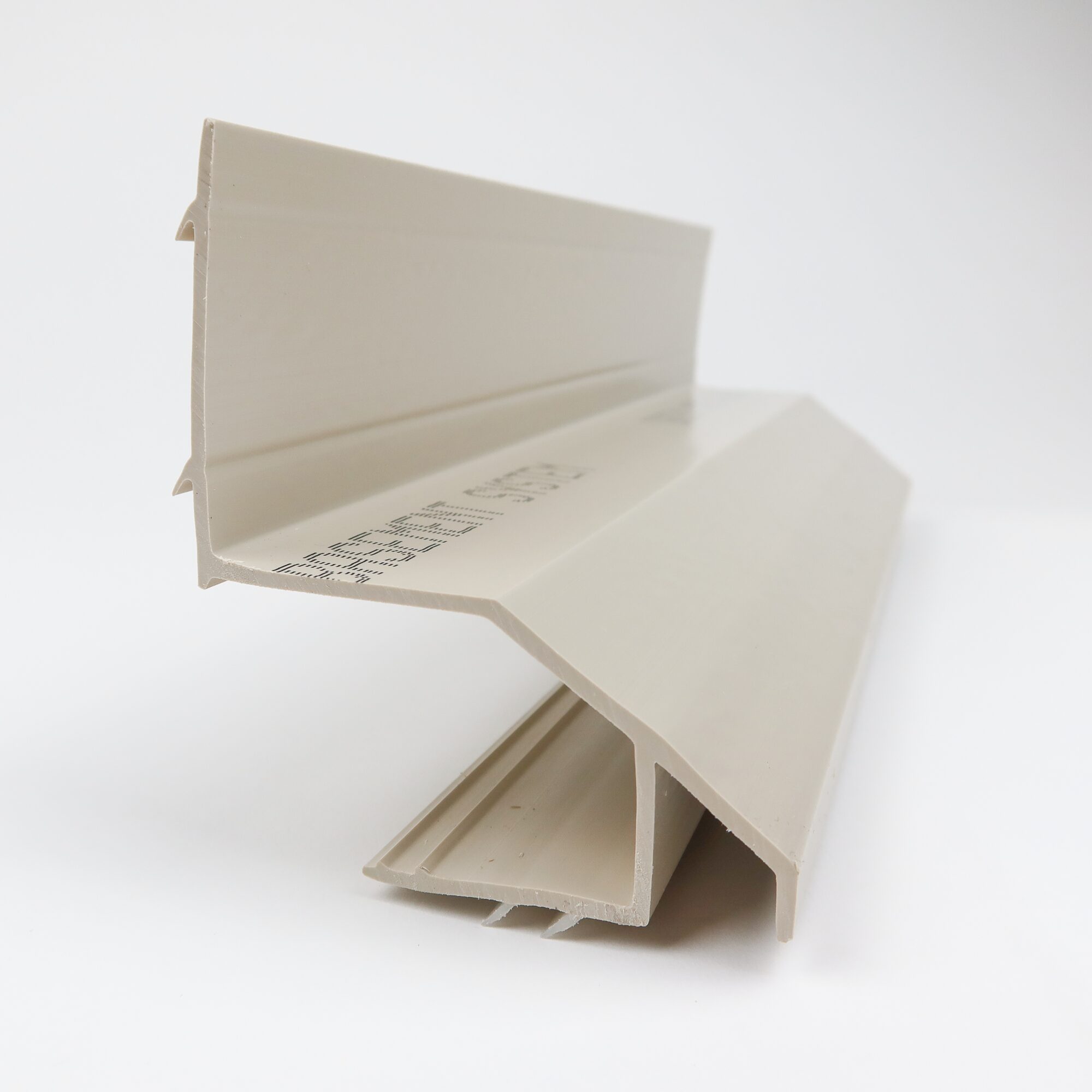

The 3 ridged spacers along the backside fin of the Drain Main Basement System catches water that may come down the wall from a crack or window well and channels it into the the system. Drain Main collects water seepage from the primary sources and quietly drains it away to the sump pump system leaving a bone dry basement.





How to Install

[ DOWNLOAD INSTALLATION GUIDE PDF ]

Step 1: The floor has to be a minimum of 3-1/2” thick over the footing. Beginning at the sump pump, remove concrete floor away from the wall approximately 6″ wide and all the way down to the footer.

Step 2: Set a short section of the Drain Main on the footer to verify the back fin of the Drain Main will stick up above the floor surface 1/4″ to 1” after the cement work is finished.

Step 3: Drill weep holes into empty cells in the bottom row of blocks 1/2″ to 1″ above footing.

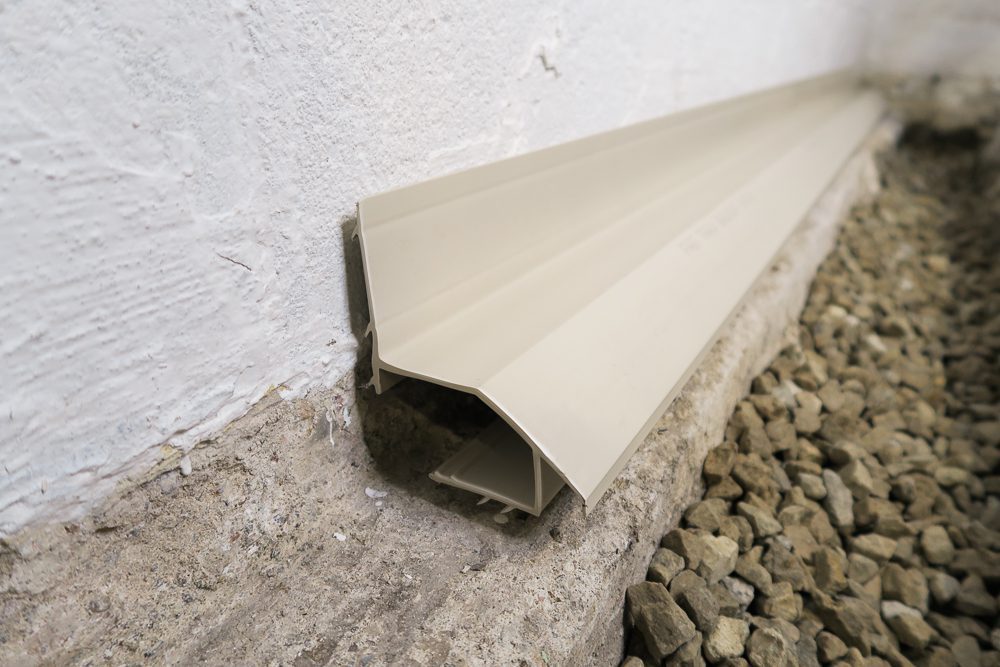

Step 4: Layout the Drain Main Basement System using the pre-molded corners, inspection ports and sump drop kit until you have a continuous conduit along the open trench.

Step 5: Seams between the main sections should be covered with vinyl duct tape to keep concrete from getting into the system while pouring concrete.

Step 6: Before pouring rock into trench, dig out 2″ of dirt under existing concrete floor. This will help prevent moisture wicking between the concrete seams.

Step 7: Pour pea rock into the trench. Fill the trench up to the top of the footing with rock.

Step 8: Pour concrete to replace floor. Avoid pouring into inspection ports.





Basement waterproofing expertsWork Smarter Not Harder Footer System

The Drain Main Basement System was engineered and patented by Ken Cotten, WATERPROOF.COM founder, after decades of hands-on experience in the basement waterproofing installation business. Ken designed the Drain Main Basement System for waterproofing contractors seeking a subfloor system without the back-breaking work of drain tile.

Ken designed a basement system that would collect the water coming in from where the wall sat on the footer without losing or dumping water under the concrete slab. Ken engineered a waterproofing system that tapped into the main source of a wet basement and trapped it into the main channel by adding flexible PVC fins on the bottom of the channel, which reduced water from escaping under the system. This new system design also combined attributes of an above floor system that would collect water from the face of the basement walls and direct it into the Drain Main channel. The end result was the rugged footer drain known as the Drain Main Basement System, which requires far less concrete removal and no trenching under the floor.

Additional information

Weight 52 lbs
Dimensions 73 × 22 × 4 in
