UnderGround Downspout Kit

ITEM# MBK093

$29.85

UnderGround Downspout is downspout extension made to keep roof water away from your home’s foundation. It’s entirely underground removing all obstructions versus traditional downspout extensions that lay across the lawn. You can even mow right over them!

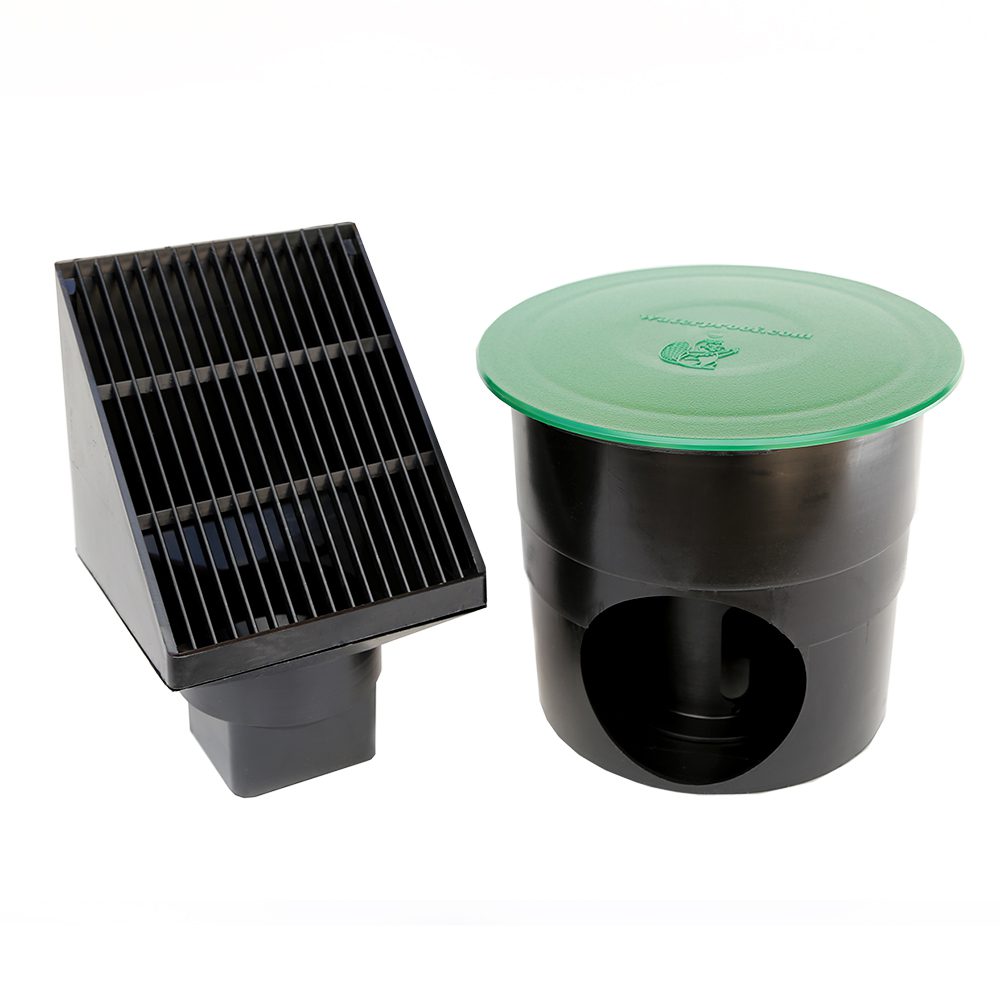

Includes: Debris filter/ice guard, green lid, center post & bubbler pot (4″ thin wall pipe & elbow not included)


Incentive

→ Landscaping contractors click here to order in bulk quantity discounts.


Product Dimension

Bubbler Pot
Width: 9″
Height: 8″

Debris Filter
Overall Depth: 5-3/4″
Overall Height: 10″
Grill Width: 6″
Grill Height: 7-3/4″
Color: Black

WORKS WITH ANY STYLE OR SIZE DOWNSPOUT

The universal debris filter is designed to accommodate any downspout. No special fittings or connectors needed. Debris filter simply rests below downspout and water free falls into the angled grate.

WORKS YEAR ROUND FROM FREEZE TO THAW

For those living an a cold climate (like us here in Minnesota!), the debris filter becomes the ice guard during the winter. Water free falls into the debris filter beneath the downspout creating an ice break. Unlike other products that connect directly onto the downspout, this ice break prevents ice build up in downspout that could reach roof line and create damage.

CAN MOW RIGHT OVER THEM

No need to move those annoying downspouts out of the way each time you mow. Simply mow right over them! The rugged, solid green lid can withstand the weight of a riding lawnmower.

SOLID LID KEEPS GRASS CLIPPINGS OUT

The solid, green lid keeps out grass clippings that can clog other underground systems with grate openings.

GREEN LID BLEND INTO LAWN

You’ll barely notice they’re there.

MAINTENANCE FREE

The self cleaning system runs maintenance free year round. Install once and you’re done! Bonus, you’ll never trip over a downspout laying across your lawn again!


HOW DO UNDERGROUND DOWNSPOUTS WORK?

UnderGround Downspouts run maintenance free year-round to properly manage roof water runoff around your foundation. Keeping water away from your home’s foundation is a step in preventing a wet basement. Plus, they blend right into your landscaping and eliminate those annoying downspouts laying across your lawn.

Debris filter removes bulk. As water and debris flow from the gutter, debris is filter out. This allows only water to enter the underground system.

Water flows to pot. Water flows through underground pipe, entering the downspout pot.

Pot releases water. As the pot fills with water lid raises to release water. If pot doesn’t fill, water drain from the bottom of the pot.


HOW TO INSTALL

Always call before you dig. US residence call the national call-before-you-dig number 811 a few days before you plan to install. Someone will be out to mark all your utility lines for your safety when digging.

Underground downspout diverter installation

STEP 1:

Select the location for the bubbler pop-up in your yard at least 8-feet from the house (you can go further if desired) in line with the downspout. Dig a hole 10” deep and 12” in diameter for the bubbler pop-up to sit in. Add a 2” layer of gravel to bottom of hole for added drainage under bubbler pop-up.

STEP 2:

Scoop out a shallow trench from the house to the bubbler pop-up hole you just dug. Slope the trench from 4” deep at the home to 8” deep where the bubbler pop-up will be placed. Tip Pile the dirt on a large tarp or sheet of cardboard to make dirt removal easy.

STEP 3:

Mark on your downspout where you’d like the top of the debris filter to be installed usually between 10” to 20” above the dirt. Cut your downspout at a 45-degree angle.

Downspout drainage ideas Downspout drainage ideas

STEP 4:

Layout your underground 4” thin-wall PVC pipe and 90-degree elbow (purchased separately at your local home center). Fit one end of the pipe into the elbow and the other end to the side of the bubbler pop-up. Adjust the layer of gravel as needed to ensure the top of the green lid on the bubbler pop-up is flush with dirt line.

STEP 5:

Hold the debris filter up against the house under your downspout and measure the length of pipe needed to connect the debris filter to the elbow. Cut and attach to elbow. Attach debris filter to vertical 4″ pipe opening. There is no need to glue the pieces together. Simply nest the bottom of the debris filter into the pipe opening.

STEP 6:

Back fill the trench and around the bubbler pop-up with dirt and tamp down. Return sod or add grass seeds and you’re finished!

Downspout drainage ideas

Additional information

Weight 2.2 lbs
Dimensions 9 × 9 × 12 in
